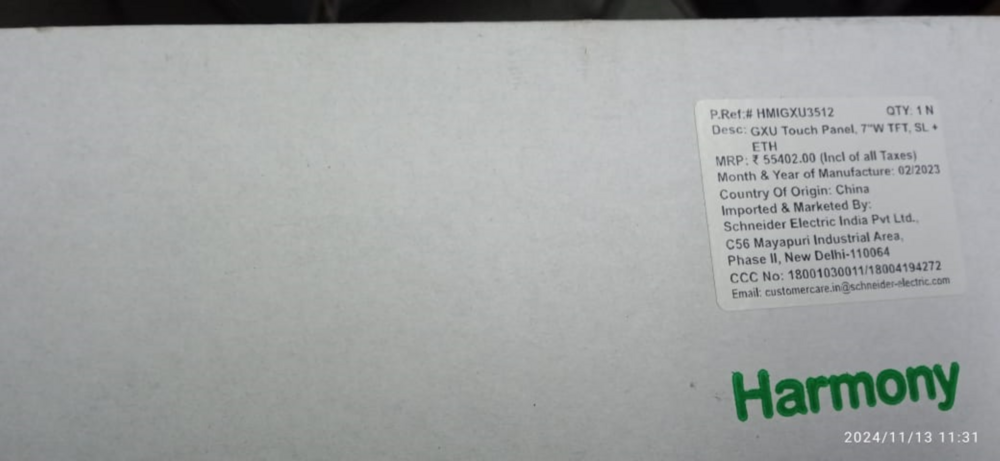

HMIGXU3512 7 inch wide screen Universal

Name: HMIGXU3512 7 inch wide screen Universal
Brand: ECOWIZTECH SOLUTION PRIVATE LIMITED
Price: 55402 INR
Availability: InStock

Price 55402 INR/ Number

Get a Price/Quote

MOQ : 1 Number

HMIGXU3512 7 inch wide screen Universal Specification

Usage & Applications
Industrial machine HMI interface, automation control

Cover Thickness
Standard

Hole Size
7 inch (Wide Screen)

Hole Spacing
Universal Mounting

Type
Human Machine Interface (HMI)

Material
Plastic and Aluminum Alloy

Dimension (L*W*H)
200 mm x 142 mm x 48 mm

Weight
Approx. 700 g

Power Source
DC Power Supply

Voltage
24 V DC

Power Consumption
8 W

Storage Temperature
-20°C to 60°C

Operating Temperature
0°C to 50°C

Display Type
TFT LCD Touchscreen

Mounting Type
Panel Mount

Protection Rating
IP65 (front panel)

Product Model
HMIGXU3512

Communication Ports
Ethernet, Serial (RS232/RS485), USB

Software Compatibility
Vijeo Designer

Resolution
800 x 480 pixels

Backlight Life
50,000 hours

Screen Size
7 inch wide screen

Touch Technology
Resistive Touch

HMIGXU3512 7 inch wide screen Universal Trade Information

Minimum Order Quantity
1 Number

Supply Ability
5 Per Week

Delivery Time
1 Week

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
CE

About HMIGXU3512 7 inch wide screen Universal

This product is part of the Magelis Easy GXU range, an offer of touchscreen panels. The advanced touchscreen panel features 7inch LCD screen and supports 800 x 480 pixels WVGA resolution. It is designed with an internal memory of 48MB for application, internal DDR of 128MB and internal backup memory of 128kB. It supports 65536 colours with backlight lifespan of 20000 hours. It is a touchscreen panel with a rated supply voltage of 24V DC. It is furnished with USB type mini B, COM1 serial link is 9-way male SUB-D, RS232C, COM2 serial link is 9-way male SUB-D, RS422/RS485, USB type A and Ethernet 10/100BASE-TX integrated connections. It is an IP65 rated product. It is suitable for textile, packaging, HVAC and pumping applications. This product is certified by CE. Magelis Easy GXU, Essential touch screen panels, are entry-level products that are perfectly tailored to meet the specific requirements of emerging markets. In other words, they answer to the following challenges, fit for purpose at affordable price with no compromise on easiness, robustness, availability and services.

Versatile Industrial Application

The HMIGXU3512 is engineered for use in automation control and industrial machinery environments. Its universal panel mounting and compatibility with established Vijeo Designer software enable seamless integration into diverse setups. The device offers robust communication via Ethernet, Serial, and USB ports, making it adaptable to different system architectures.

Reliable and User-Friendly Design

With an IP65-rated front panel for enhanced dust and water resistance, the HMIGXU3512 promises longevity and reliability. The resistive touch TFT LCD provides intuitive operation, while a backlight life of 50,000 hours ensures consistent performance over extended periods. Its standard hole size and universal mounting assist in straightforward installation.

FAQs of HMIGXU3512 7 inch wide screen Universal:

Q: How can the HMIGXU3512 be integrated into existing industrial systems?

A: The HMIGXU3512 can be easily integrated via its Ethernet, Serial (RS232/RS485), and USB ports. Its universal mounting and standard panel hole size make it compatible with a wide range of industrial machines. The HMI is also fully compatible with Vijeo Designer software, ensuring seamless setup within most automation environments.

Q: What benefits does the resistive touchscreen offer compared to other types?

A: The resistive touchscreen of the HMIGXU3512 allows for precise operation, even when users are wearing gloves. This makes it particularly well-suited for industrial settings where operators may work in challenging conditions, enhancing usability and safety.

Q: When should I consider replacing the display or backlight?

A: The HMIGXU3512 features a backlight with a rated life of 50,000 hours. Replacement is only necessary if you notice significant dimming, flickering, or complete failure of the backlight, which is typically after many years of continuous use.

Q: Where is the HMIGXU3512 most effectively used?

A: This HMI is most effective in industrial automation, machinery control panels, and environments requiring reliable human-machine interfaces. Its IP65 front panel ensures durability in moderate dust and water exposure areas, making it suitable for various factory and production floor applications.

Q: What is the typical installation process for the HMIGXU3512?

A: The device is designed for straightforward panel mounting. Simply cut a 7-inch wide screen hole in the panel, align the universal mounting points, and secure it in place. Connect the necessary power and communication cables, then configure the HMI using Vijeo Designer software.

Q: How does the protection rating benefit industrial users?

A: The IP65 front panel ensures resistance to dust and water jets, which safeguards the sensitive electronic components and extends the products operational life, reducing downtime and maintenance needs in demanding industrial settings.
