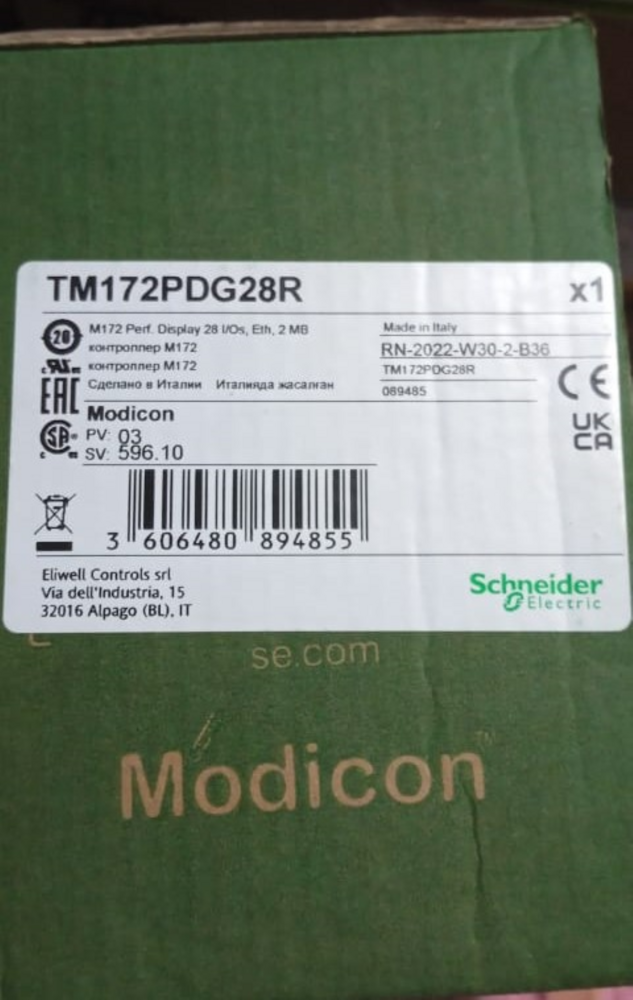

Controller, Modicon M171/M172/M173

Name: Controller, Modicon M171/M172/M173
Brand: ECOWIZTECH SOLUTION PRIVATE LIMITED
Price: 65059 INR
Availability: InStock

Price 65059 INR/ Number

Get a Price/Quote

Controller, Modicon M171/M172/M173 Specification

Product Type
Programmable controllers

Application
HVAC and pumping solution

Protection Level
Other

Frequency (MHz)
50 Hertz (HZ)

Rated Voltage
24 V +/- 10 % AC 20...38 V DC Volt (V)

Energy Consumption
15 W at 24 V AC/DC Watt Hour (Wh)

Dimension (L*W*H)
144mm x 60.5mm x 110mm Millimeter (mm)

Weight
0.385 kg Kilograms (kg)

Warranty
YES

Controller, Modicon M171/M172/M173 Trade Information

Minimum Order Quantity
2 Number

Supply Ability
10 Per Week

Delivery Time
7 Days

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
CE EAC CSA cURus

About Controller, Modicon M171/M172/M173

This product is part of the Modicon M171/M172 range, an offer of programmable controllers for HVAC solutions. This programmable controller offers 8 discrete inputs with sink or source (positive/negative) discrete logic. It is a module with discrete input voltage of 24V AC/DC, 2.5mA. It offers 8 configurable by pair analogue input and 2 analogue outputs of 4mA to 20mA, 0V to 10V. It features 3 LEDs for programmable and 1 LED for power signaling. It is an IP20 rated product. Its dimensions are 144mm (width) x 60.5mm (depth) x 110mm (height). It weighs 0.385kg. The main application of this module is HVAC and pumping solution. This product is certified by CE, EAC, CSA and CURus. It meets EN/IEC 60730 standard. It is suitable for panel mounting with accessory. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.
